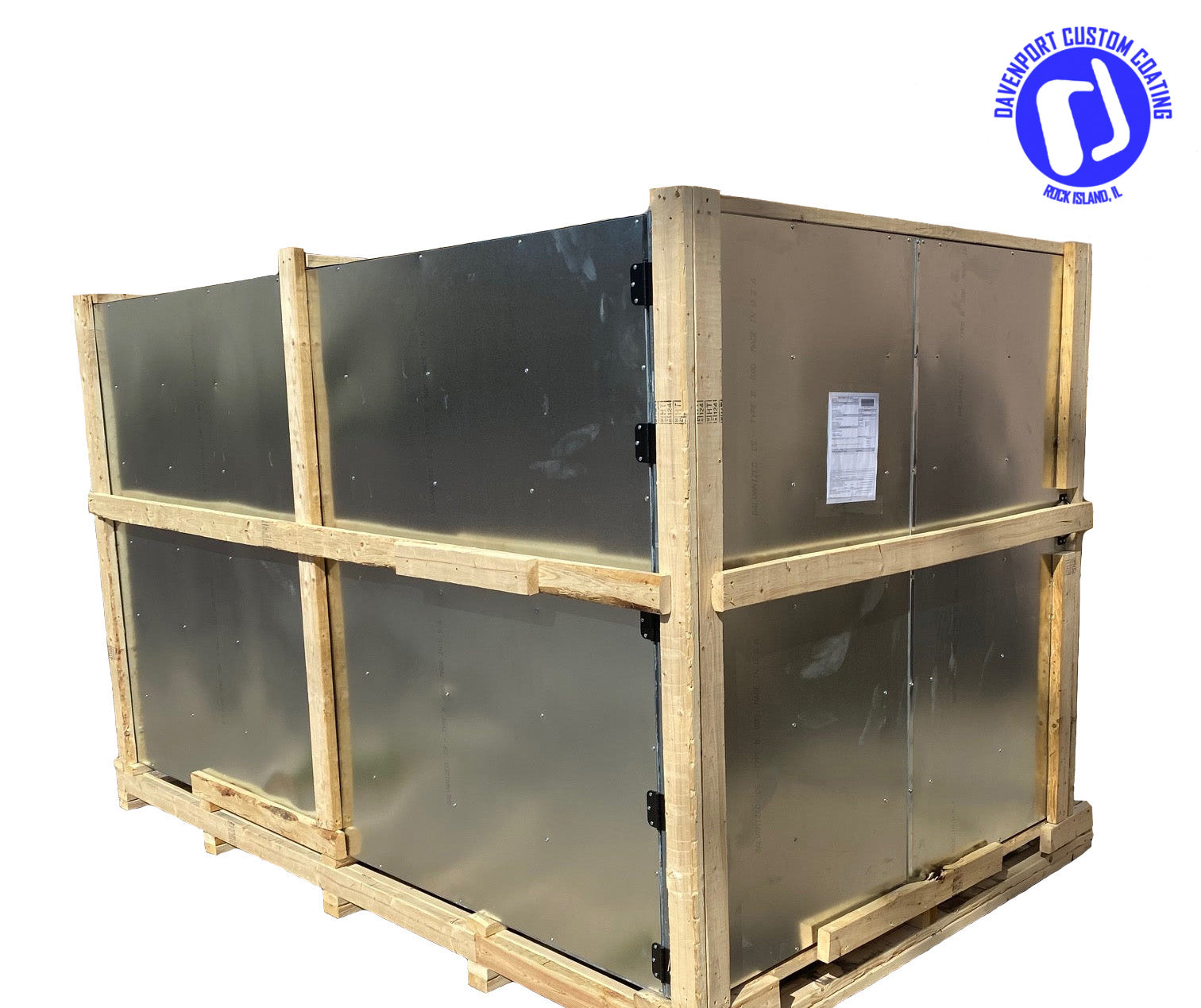

6x8x12 Electric Batch Powder Coating Oven
6x8x12 Electric Batch Oven
Eight Heating Elements with Covers.
Two Circulation Fans included.
Unit comes standard with a SINGLE door. If double door is needed please use the checkboxes to add it to the order.
Double walled construction.
G 90 Galvanized Sheeting inside and out.
Flame retardant 1300F Rockwool insulation.
240V Single phase (208/230/240/480 3 Phase available).
104A Draw.
Please call or email for current lead times and shipping quotes.
Thanks,
Sales: 309-631-0664
Directions for use:
Top Switch: Main Power
Second Switch: Elements
Third Switch: Circulation Fan
Power on all the switches.
Press the up or the down arrow once, a smile light will blink in the bottom right hand corner of the display. While this light is blinking you may adjust the set temperature to the desired setpoint. Let sit for 3 seconds and the cycle will begin. Setpoint will stay in the computer even if the machine is powered down.
